Product description

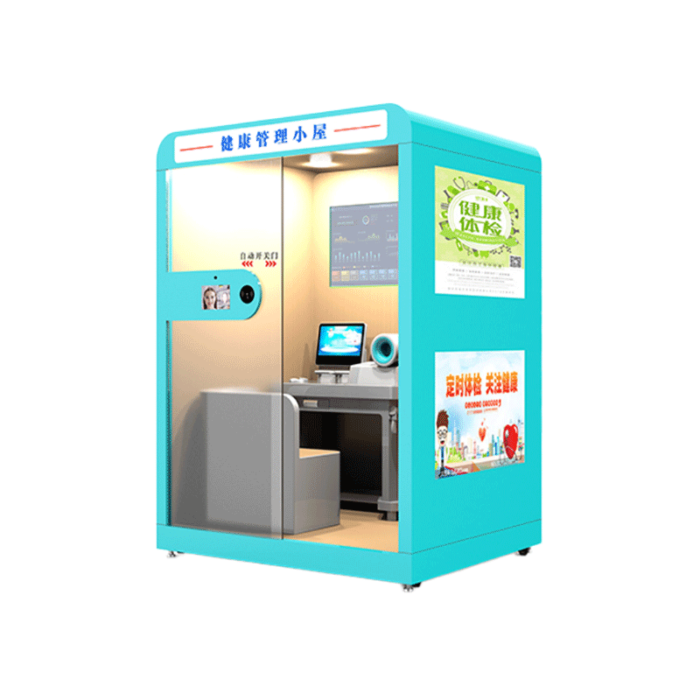

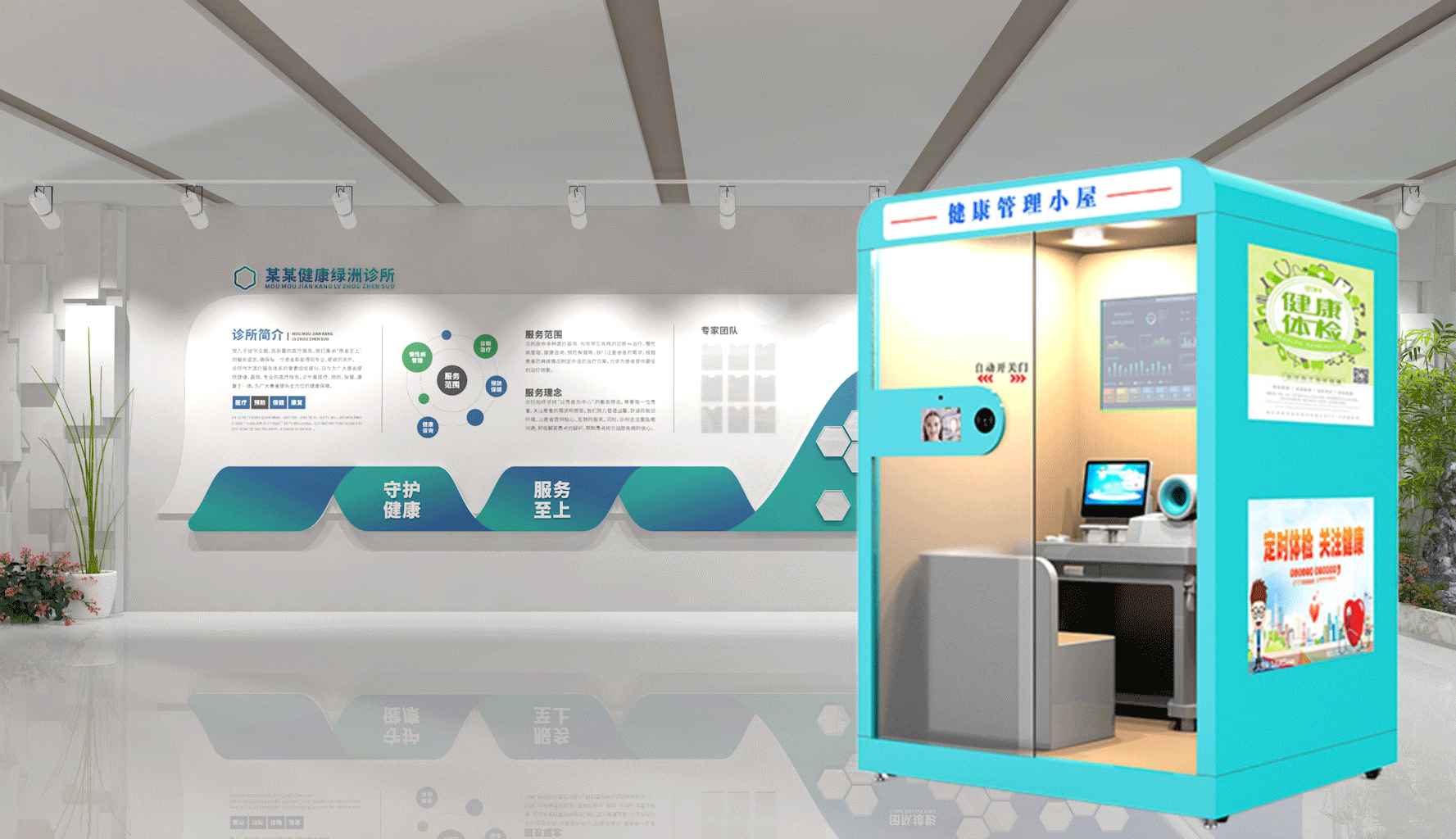

The whole process is self-service. Users do not need to rely on medical staff and can complete all physical examination items by themselves. For example, on some self-service physical examination machines, users can smoothly perform height, weight, vision, hearing and other items by clicking on the touch screen and following the voice and screen prompts.
Self-service ordering machine description
| Brand Name | XTD-Medical and Health Cabin | Industrial Motherboards | Onboard Intel I5 class CPU, 10U6 serial, Gigabit LAN port, LVDS/HDMI display |
| Memory | 8G DDR3 | Display Module | 21.5 inch LCD module, resolution 1920*1080, brightness 250cd/m |
| Hard Disk | 256G solid state hard disk | Capacitive display all-in-one screen | 21.5 inch capacitive touch screen, support multi-touch, USB |
| Speaker | Rated input power: 0.3 W. Maximum input power: 0.5 W. Output SPL: 90±3dm | Maximum resolution | 1200*1200dpi |
| Measuring range: Cholesterol | cholesterol: 2.59-10.35mmol/L (100-400mg/dL) | Measuring range: blood pressure | Measuring range: blood glucose: 1.1-33.3mmol/L (20-600mg/dL) |
The whole machine is made of high-quality steel, sturdy and thick; it will not be deformed in high temperature and cold environment; the surface of the shell adopts high-end metal spraying technology; it is rust-proof, waterproof, durable, corrosion-resistant, and can resist the interference of harsh environments; it is splash-proof, dust-proof, oil-proof, and static-proof, etc.; the module adopts an easy-maintenance design for easy maintenance; the internal wiring is neat and standardized.
Body composition (water, protein and minerals)：
1. Measurement method: 8-point contact electrode, bioelectrical impedance measurement (BIA)
2. Measuring frequency: 5,50250kHz
3. Measuring time: about 1 minute
4. Impedance measurement range: 20~1200Q
5. Weight measurement chart: 5-250kg
6. Measurement items: total water, protein, inorganic salt, body fat, body weight, muscle mass, defatted weight, skeletal muscle mass, body mass index, body fat percentage, waist-to-hip ratio, visceral fat stage, weight control, body shape determination, nutritional assessment, muscle assessment of basal metabolic rate, etc.
