🌟 Principais recursos
-

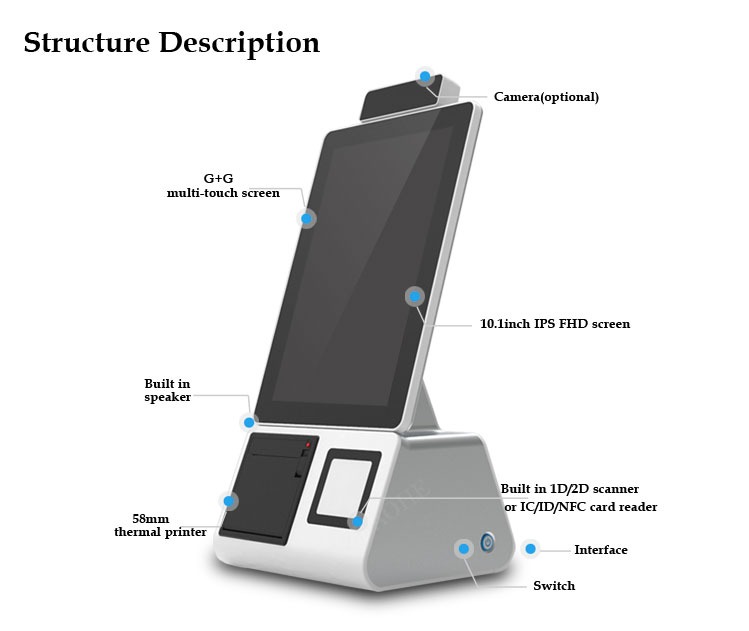

💳 Compact Self-Service Terminal: Small form factor suitable for desktop or counter use.
-
🖥️ 10.1-Display de toque capacitivo em polegadas: IPS LED screen with 800×1280 resolution and excellent clarity.
-
📡 Multiple Connectivity Options: Built-in Wi-Fi, Bluetooth 4.0, LAN, and TF card expansion.
-
🧾 Optional Thermal Printer: 58mm fast printing module for receipts and transaction tickets.
-
🔍 Scanner de código QR integrado: Supports 1D/2D barcode reading from paper or mobile screens.
-
💡 Pagamento sem contato pronto: NFC, RFID, and IC card reader for seamless transactions.
-
🤖 Android 7.1 SO: Compatible with Google Play and third-party apps for flexible deployment.
⚙️ Especificações Técnicas
| Categoria | Especificação |
|---|---|
| Sistema operacional | Android 7.1 |
| CPU | RK3288 Cortex-A17 Quad-Core |
| BATER / ROM | 2GB / 8GB |
| Tamanho de exibição | 10.1″ IPS LED-backlit screen |
| Resolução | 800×1280 |
| Tela sensível ao toque | 10-ponto capacitivo multitoque |
| Wi-fi | 802.11 b/g/n |
| Bluetooth | 2.1 / 3.0 / 4.0 |
| Network Port | RJ45 (10/100M adaptativo) |

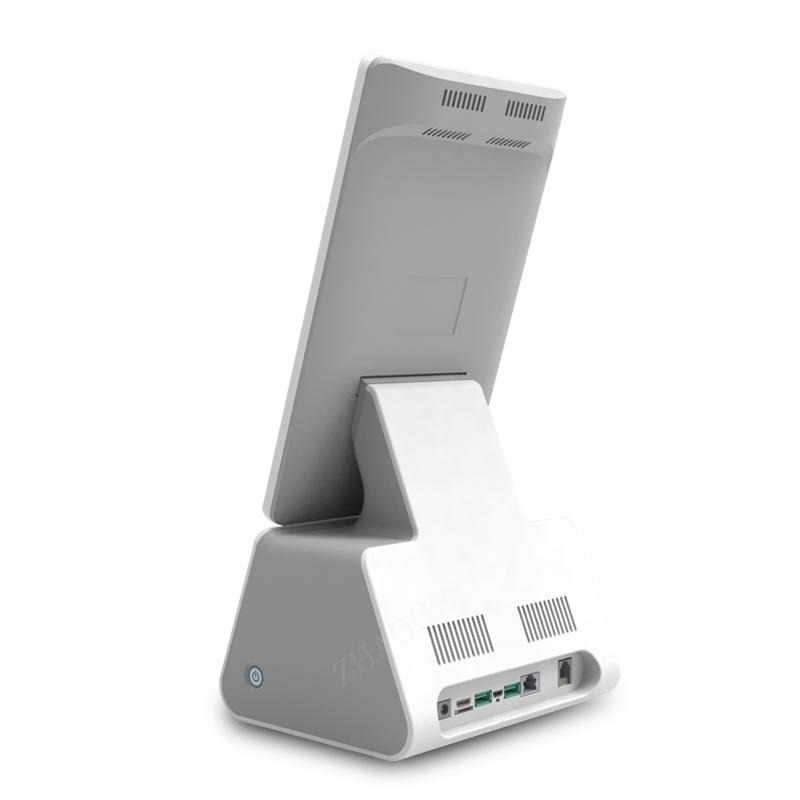

| Portas de E/S | 1×Micro USB, 1×RJ11, 2×USB, 1×HDMI, 1×TF card, 1×DC IN |
| Palestrante | 3W built-in speaker |
| Fonte de energia | CC 12V / 4UM |
| Opções de cores | Branco & Cinza |
| Temperatura operacional. | 0°C ~ 50 °C |
| Temperatura de armazenamento. | -20°C ~ 60 °C |
| Material | Quadro ABS + suporte metálico |
| Garantia | 1 year standard |
🏢 Cenários de aplicação
-
🛒 Varejo & Minilojas: Streamline checkout and payment process.
-
🍜 Restaurantes & Cafés: Self-ordering and quick payment.
-
🏨 Hotéis: Guest self check-in or billing terminal.
-
🎫 Eventos & Ticketing: Compact solution for ticket sales and verification.
-
💼 Corporate Receptions: Visitor management and payment processing.
