⚙️ Principais recursos

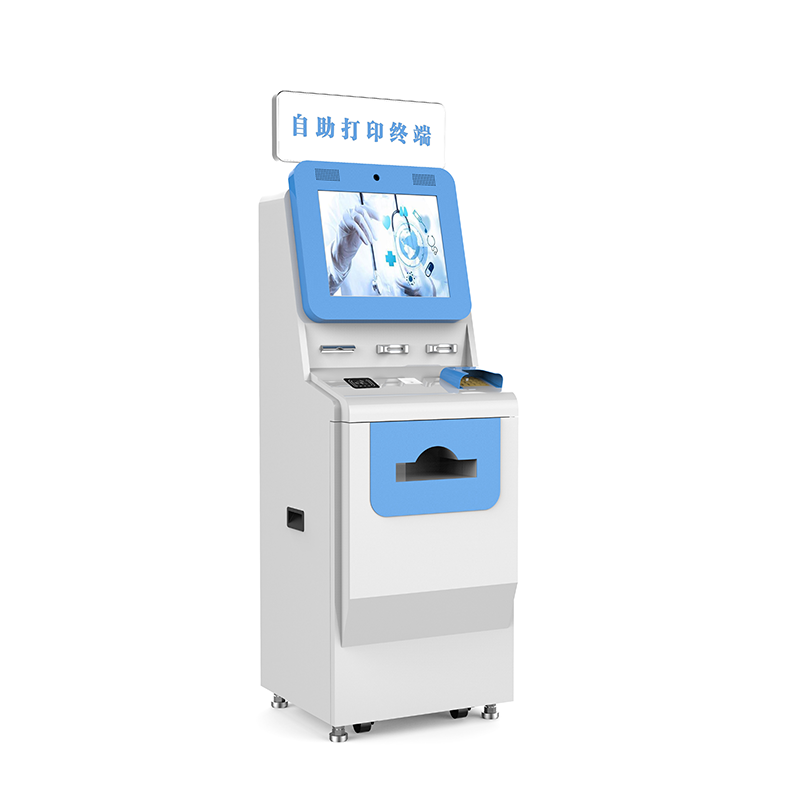

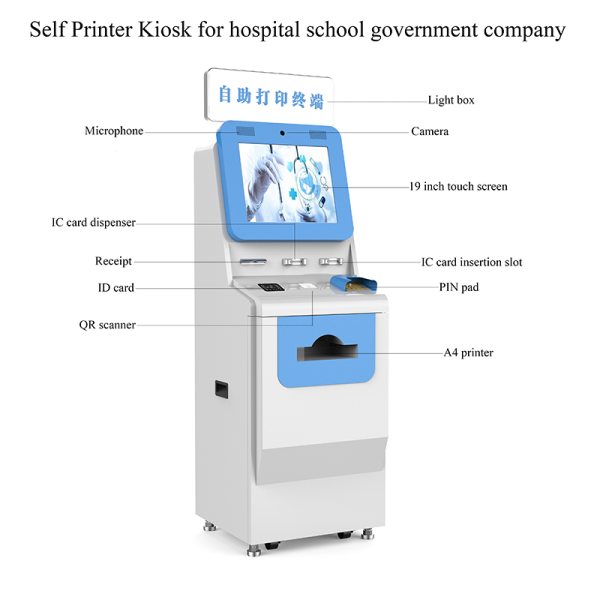

All-in-One Printing & Service Terminal — Supports receipt, A4 document, and ID card printing in one machine.
19-Inch Capacitive Touch Screen — Intuitive interface for interactive user experience and easy operation.
IC Card Dispenser & Reader — Automatically dispenses and retrieves IC cards for ID or access applications.
QR & Leitor de código de barras — High-speed recognition of 1D/2D codes for registration, pagamento, or document retrieval.
A4 Laser Printer — Integrated full-page printer for certificates, formulários, or hospital documents.
Impressora de recibos — 80mm thermal printer for quick transaction slips or confirmation tickets.
Teclado PIN & Slot para cartão — Secure data entry for payment or identity verification.
Built-In Camera & Microfone — Supports face capture, video verification, and voice interaction.
Illuminated Light Box — Top-mounted LED light box for clear signage and branding visibility.
Industrial Durability — Cold-rolled steel structure with anti-rust coating and modular front-door maintenance design.
🧩 Especificações Técnicas
| Parâmetro | Especificação |
|---|---|
| Modelo | XTD-1910 Self Printer Kiosk |
| Mostrar | 19-polegada TFT-LCD, 10-ponto de toque capacitivo, 1920Resolução ×1080 |
| Processador | Intel i5 / RK3568 optional |
| Sistema | Windows 10 / Android 11 |
| Memória & Armazenar | 4–8GB RAM / 64–SSD de 256 GB |
| Impressora (A4) | Laser A4 printer for documents & formulários |
| Impressora de recibos | 80impressora térmica mm, cortador automático |
| IC Card Dispenser | Capacity: 100–150 cards; supports IC/ID issuance and collection |
| IC Card Reader | Contact & contactless card reading, EMV compatible |
| Leitor QR | 1Código de barras D/2D & QR code recognition |
| Teclado PIN | Teclado numérico criptografado |
| Câmera | 2MP / 5MP optional, supports face ID |
| Microfone | Built-in for voice interaction or call center linkage |
| Light Box | LED illuminated, customizable logo or signage |
| Fonte de energia | AC 100–240V 50/60Hz |
| Material | Cold-rolled steel with anti-corrosion coating |
| Rede | Ethernet, Wi-fi, 4G opcional |
| Operating Environment | 0°C–45 °C, 10–90% UR |
| Opções de cores | Branco, gray, azul, ou personalizado |
| Instalação | Free-standing floor type |
| Certificação | CE / FCC / RoHS optional |
🏢 Cenários de aplicação
Hospitais & Clínicas: Cadastro de paciente, document printing, Verificação de identidade, and medical report collection.
Escolas & Universidades: Student ID issuance, course schedule printing, and self-service inquiries.
Salas de Serviços Governamentais: Certificate printing, tax receipt collection, and citizen self-check-in.
Corporativo & Office Buildings: Visitor registration, access card issuance, e impressão de documentos.
Public Institutions: Information inquiry, Digitalização de código QR, and payment service integration.
