🌟 Principais recursos
-
🖥️ Dual OS Support: Choose between Windows or Android for flexible deployment.
-
🍔 Self Ordering & Cashless Payment: Ideal for restaurants and retail stores to reduce queues.
-

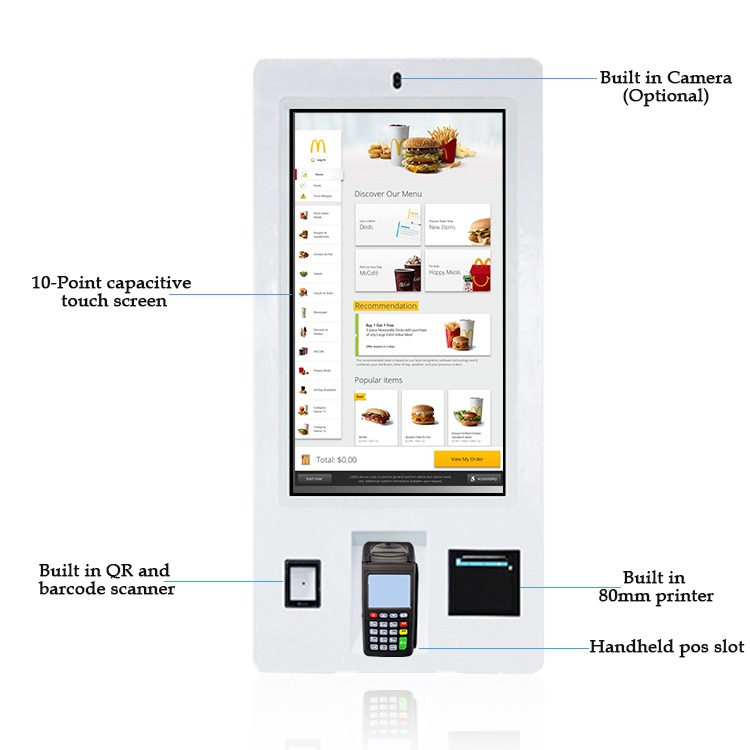

🧾 Built-in 80mm Printer: Fast thermal receipt printer with auto-cutter.
-
📸 Optional Camera & Sensors: Supports 2MP facial recognition and NFC/ID card reading.
-
🔊 High-Quality Audio: Dual 5W internal speakers for clear sound feedback.
-
⚙️ Customizable Configurations: Supports Intel i3/i5/i7 or RK3288/RK3399 processors.
-

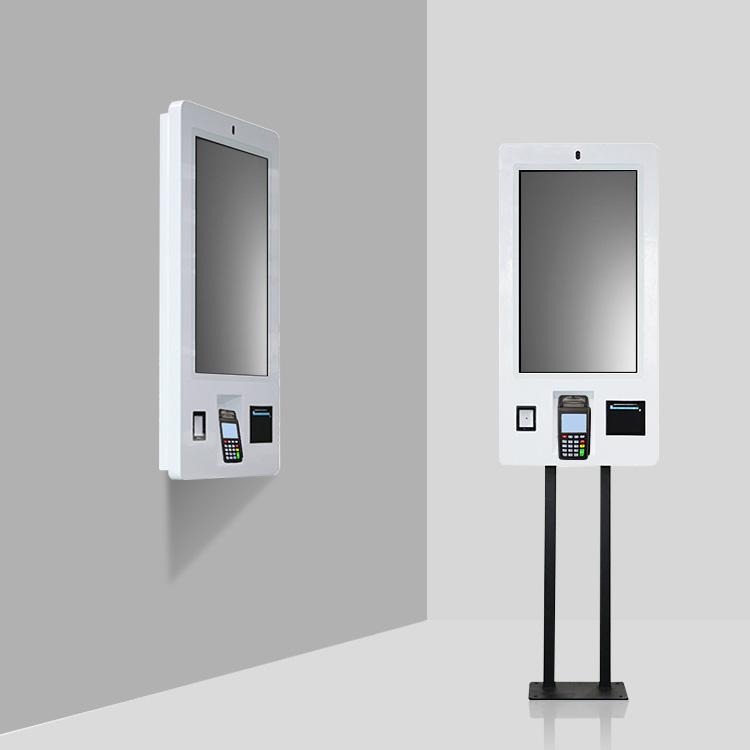

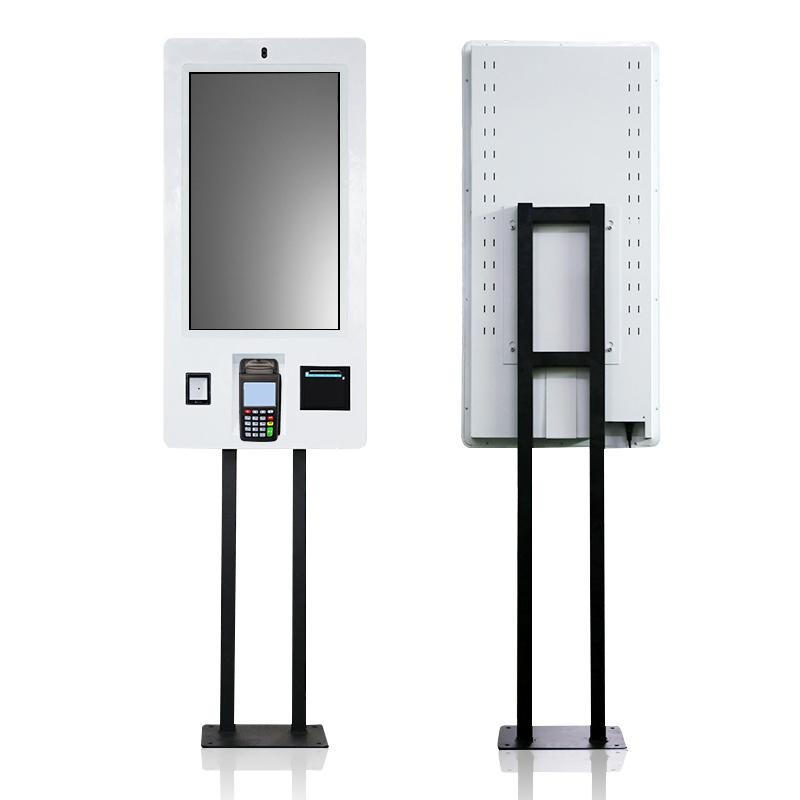

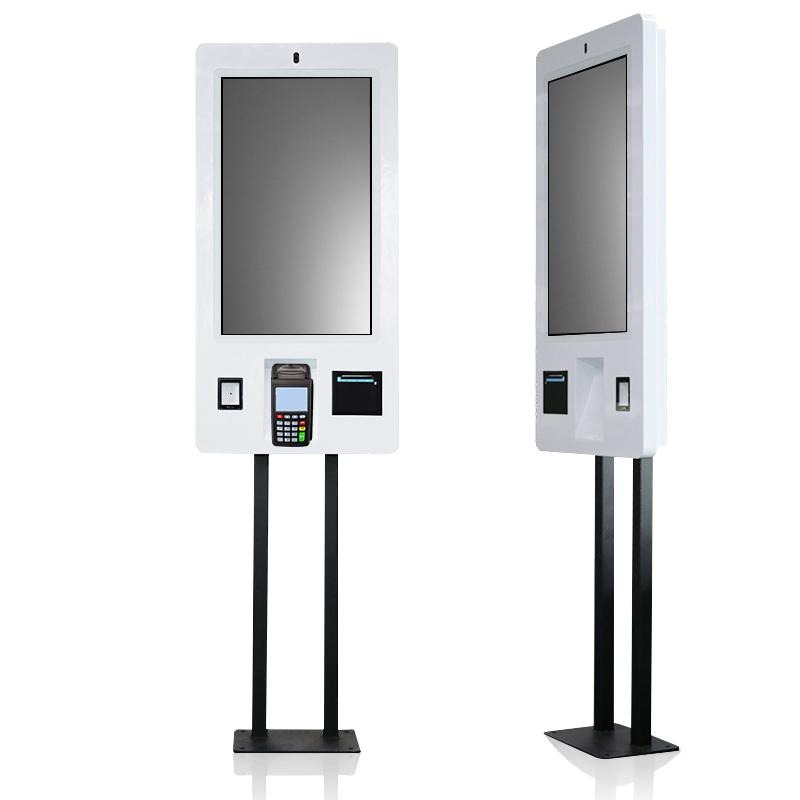

🧍 Flexible Mounting: Floor standing or wall-mounted options available.
⚙️ Especificações Técnicas
| Categoria | Windows Configuration | Android Configuration |
|---|---|---|
| Processador | Intel® Core™ i3 3rd Gen (i5/i7 optional) | ARM Rockchip RK3288 (RK3399 opcional) |
| Memória | 4GB (8GB opcional) | 2GB (4GB opcional) |
| Armazenar | 64SSD de GB (128GB–512GB optional) | 8GB (16GB–64GB optional) |
| Tamanho de exibição | 32 polegada (24”/27” optional) | 32 polegada (24”/27” optional) |
| Resolução | 1080×1920 Full HD | 1080×1920 Full HD |
| Brilho | 220 nits | 220 nits |
| Touch Panel | True-Flat PCAP, 10-point G+G | True-Flat PCAP, 10-point G+G |
| Impressora | 80mm Thermal Printer, Auto Cutter | 80mm Thermal Printer, Auto Cutter |
| Palestrante | 2×5W Internal | 2×5W Internal |
| Scanner | QR & Barcode (MP718) | QR & Barcode (MP718) |
| Wi-fi | 802.11 b/g/n | 802.11 b/g/n |
| Network Card | Gigabit Network (RTL8111E) | Gigabit Network (RTL8111E) |
| Mainboard I/O | HDMI×1, VGA×1, RJ45×1, USB×4, MIC-IN×1 | HDMI×1, RJ45×1, USB×2, SD×1, SIM×1, MIC-IN×1 |
| External I/O | RJ45×1, USB×1, CD×1 | RJ45×1, USB×1, CD×1 |
| Mounting | Floor Standing / Wall Mount | Floor Standing / Wall Mount |
| Módulos Opcionais | Câmera facial, NFC/IC Reader, Fingerprint, 4Módulo G | Câmera facial, NFC/IC Reader, Fingerprint, 4Módulo G |
| Cor | Branco | Branco |
| Operating Temp. | 0°C–50°C, 10%–90%RH | 0°C–50°C, 10%–90%RH |
| Storage Temp. | -20°C–60°C, 5%–90%RH | -20°C–60°C, 5%–90%RH |
🏢 Cenários de aplicação
-
🍟 Fast Food Chains (KFC, Burger King) – Accelerate ordering and reduce wait times.
-
🏨 Hotéis & Cafés – Ideal for self check-in or order pickup.
-
🏪 Lojas de varejo & Supermercados – Enable cashless, contactless payments.
-
🏢 Corporate Canteens – Smart ordering system for employees.
