✨ Principais recursos

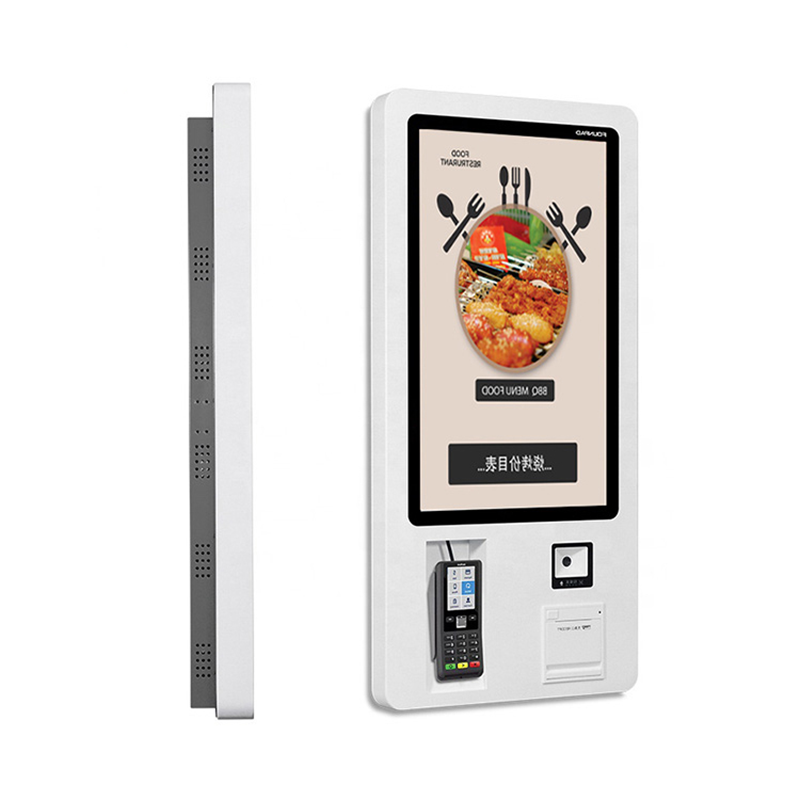

🖥️ Brilliant 32-Inch Full HD LED Display
Equipped with a 32-inch Full HD 1920×1080 LED LCD panel (A-grade, LG/SAMSUNG/AU brand), providing vivid colors, sharp contrast, and wide 178° viewing angles for crystal-clear menu visibility in any lighting condition.
👆 Responsive Multi-Touch Interaction
Adopts a capacitive touch frame supporting multi-point gestures such as pinch-to-zoom and drag.
Touch response time ≤8ms, ensuring smooth, intuitive interaction for customers during ordering and payment.
💪 Durable and Safe Design
Protected by 3mm explosion-proof tempered glass with Mohs hardness level 7 and anti-glare treatment, ensuring safety, durabilidade, and comfortable viewing even under strong ambient light.
🔌 Stable Power and Low Consumption
Powered by CA100–240V, featuring intelligent switching and only 80C working power.
Designed for continuous operation in restaurants, cafés, and retail environments with <1W standby consumption.
🧠 Integrated Ordering and Payment Functions
Compatible with multiple payment modules such as Leitor de código QR, Leitor de cartão NFC, e impressora de recibos.
Can be linked to a restaurant POS system or cloud ordering software for real-time menu updates and data sync.
⚙️ Flexible Wall-Mounted Installation
O slim, vertical design saves counter space and offers a modern, elegant appearance suitable for cadeias de fast food, cafeterias, and convenience stores.
🧩 Especificações Técnicas
| Parâmetro | Especificação |
|---|---|
| Nome do produto | Self Service Order Kiosk |
| Tamanho | 32 Polegada |
| Tipo de tela | LED LCD Screen (A Grade) |
| Brand | LG / SAMSUNG / AU |
| Área de exibição | 698.4(H) × 392.9(V) milímetros |
| Resolução | 1920×1080 (Full HD) |
| Brilho | 450 CD/m² |
| Taxa de contraste | 2000:1 |
| Tempo de resposta | 8EM |
| Freqüência | 60Hz |
| Color Gamut | 60% NTSC (CIE1931) |
| Ângulo de visão | 178° Horizontal / 178° Vertical |
| Vida útil | >60,000 horas |
| Tecnologia de toque | Multitoque capacitivo |
| Pontos de contato | Multi-touch, supports zoom and drag |
| Tempo de resposta (Touch) | ≤8ms |
| Touch Accuracy | ±2mm over 90% of active area |
| Single Touch Life | >50 milhões de toques |
| Transmittance | >85% |
| Tratamento de superfície | Anti-glare, fog value ≤3% |
| Glass Hardness | 3mm vidro temperado, Mohs 7 |
| Resolução (Interpolation) | 32768 × 32768 |
| Fonte de energia | CA100–240V, 50/60Hz |
| Interface de energia | Two-phase three-wire system |
| Consumo de energia | 80C (Trabalhando) / 1C (Espera) |
| Instalação | Montado na parede |
| Sistema operacional (opcional) | Android / Windows / Linux compatible |
| Certificações | CE, FCC, RoHS |
🏢 Cenários de aplicação
🍔 Restaurantes Fast Food (KFC, McDonald’s, etc.) — self-order, navegação no menu, and QR payment.
☕ Cafés & Lojas de bebidas - personalização do pedido, impressão de recibo eletrônico.
🛒 Varejo & Lojas de conveniência - auto-check-out, login de membro.
🏬 Praças de alimentação & Shoppings - estações centralizadas de pedidos e coleta.
