🌟 Principais recursos
-
🖥️ 24-Inch Full HD Display: 1920×1080 resolution with LED backlight and wide 178° viewing angle.
-
💳 Multiple OS Options: Suporta Android 5.1+ or Windows 7/10 for flexible deployment.
-

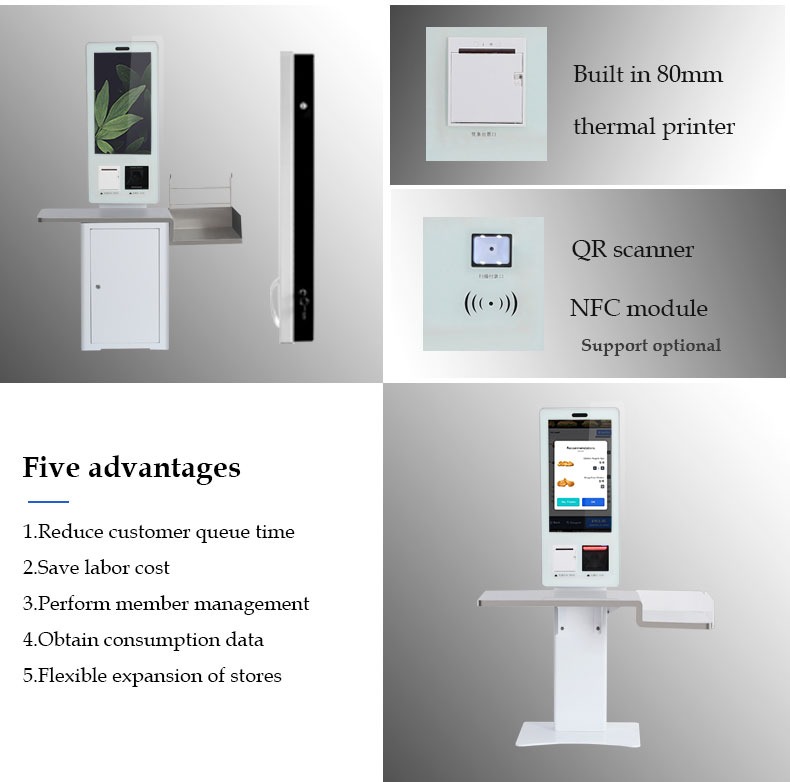

🧾 Built-in 80mm Thermal Printer: High-speed, reliable receipt printing.
-
🔍 Integrated QR Code Scanner: Fast and accurate barcode or payment code recognition.
-
📡 Stable Connectivity: Gigabit Ethernet, dual-band Wi-Fi, and optional NFC module.
-
💡 Aluminum Alloy Housing: Durable, stylish structure suitable for commercial environments.
-
🔈 Built-in Stereo Speakers: 5W×2 for clear audio feedback or voice prompts.
-

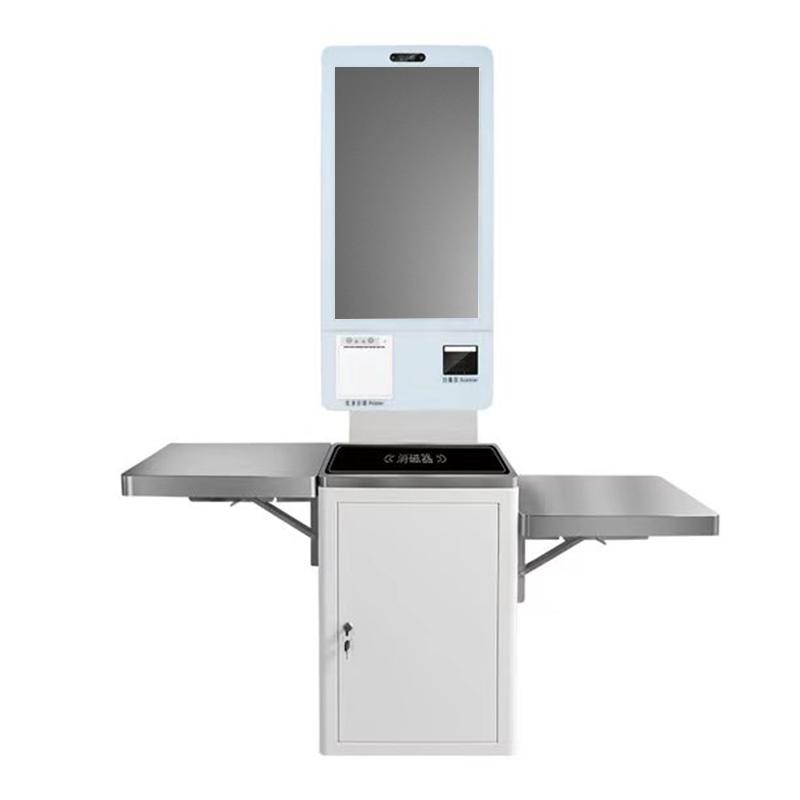

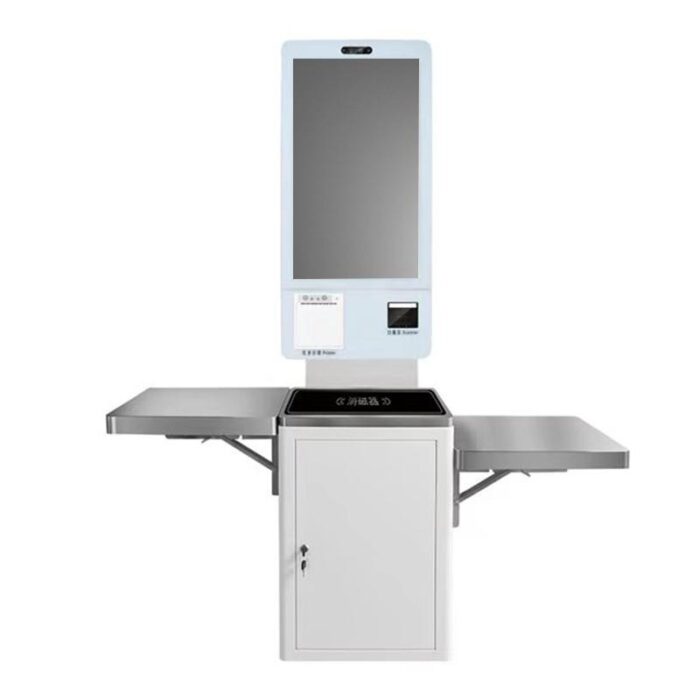

🧩 Expandable & Customizable: Supports POS device mounting, tray, and checkout counter integration.
⚙️ Especificações Técnicas
| Categoria | Especificação |
|---|---|
| Mostrar | 24″ TFT-LCD, LED backlight |
| Resolução | 1920×1080 pixels |
| Brilho | 250 CD/m² |
| Taxa de contraste | 1000:1 |
| Ângulo de visão | 178°/178° (E/V) |
| Response Time | 14 ms |
| Tela sensível ao toque | 10-ponto de toque capacitivo |
| Material | Aluminum alloy + sheet metal |
| Cor | Branco |
| Palestrante | 5W × 2 built-in |
| Fonte de energia | 100V–240V, 50/60Hz |
| Consumo de energia | 60C (max), ≤1W standby |
| Working Temperature | 0°C ~ 50 °C |
| Temperatura de armazenamento | -20°C ~ 60 °C |
| Humidity | 10%–90% RH |
Android Configuration
| Item | Especificação |
|---|---|
| CPU | RK3288 Cortex-A17, Quad-Core, 1.8GHz |
| GPU | Mali Quad-Core |
| BATER / ROM | 2GB / 8GB (optional 4GB / 16GB / 32GB / 64GB) |
| SO | Android 7.1 or higher |
| Interfaces | MIC-IN×1, RJ45×1, HDMI×1, SD×1, SIM×1, USB×2 |
| Conectividade | Wi-fi 802.11 b/g/n, Bluetooth supported |
Windows Configuration
| Item | Especificação |
|---|---|
| Processador | Intel J1900 Quad-Core (i3/i5/i7 optional) |
| BATER / Armazenar | 4GB / 64SSD de GB (optional 8GB / 128GB / 1TB HDD) |
| Rede | Gigabit LAN (RTL8111E), Wi-fi 802.11 b/g/n |
| Interfaces | HDMI×1, VGA×1, RJ45×1, USB×4, LINE OUT×1, MIC IN×1 |
| SO | Windows 10 |
🏢 Cenários de aplicação
-
🍔 Quick-Service Restaurants (QSR): Streamline self-ordering and checkout.
-
🏪 Varejo & Convenience Stores: Enable contactless payments and e-receipts.
-
🏨 Hotéis & Hospitalidade: Simplify guest self check-in and room service orders.
-
🏫 Educational or Exhibition Spaces: Manage registration and ticketing easily.
