⚙️ Ключевые особенности

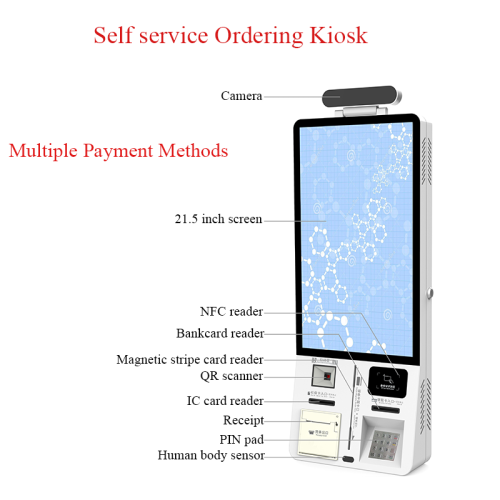

🍔 Interactive 21.5-Inch Touch Screen
Full HD 21.5-inch LCD display (1920×1080) with 10-точечное емкостное касание.
High brightness and anti-glare surface ensure excellent visibility in indoor light.
Responsive interface designed for intuitive ordering and customer engagement.
💳 All-in-One Multi Payment System
NFC Reader: Supports contactless payments such as Apple Pay, Google Pay, and UnionPay QuickPass.
Bankcard Reader: Secure chip or swipe card transactions for debit and credit cards.
Magnetic Stripe Reader: Reads traditional payment and loyalty cards.
IC Card Reader: Supports smart cards and membership identification.
Сканер QR-кода: Reads all 1D and 2D codes for Alipay, WeChat Pay, or e-vouchers.
PIN Pad: Encrypted input for secure transactions and privacy protection.
📄 Printing & Receipts
Встроенный высокоскоростной термопринтер for immediate printing of receipts, order slips, or invoices.
Supports black mark recognition and automatic paper cutting.
👁️ Smart Sensing & Security
Integrated Camera: Enables face detection or visual communication functions.
Human Body Sensor: Automatically activates screen when users approach to save power.
Data Encryption: Ensures financial-grade transaction security and customer privacy.
🔗 Возможности подключения & Интеграция
Совместим с POS, ERP, or restaurant management systems.
WiFi, Ethernet, or optional 4G module for flexible network connectivity.
Поддерживает Андроид или Windows operating systems for software customization.
🧩 Прочный дизайн
Constructed with cold-rolled steel and tempered glass, built for continuous operation.
Modular structure for quick maintenance, upgrades, and branding customization.
Ideal for wall-mounting or floor-stand installation.
🧰 Технические характеристики
| Component | Спецификация |
|---|---|
| Отображать | 21.5-дюймовый ЖК-дисплей, 1920×1080, 16:9 aspect ratio |
| Touch Screen | 10-point capacitive, transmittance >85% |
| Процессор / Система | Android 11 / Окна 10 необязательный |
| Payment Modules | НФК, IC-карта, bank card, magnetic stripe card, QR scanner, PIN pad |
| Камера | HD camera for face or payment capture |
| Чековый принтер | 80mm panel thermal printer, auto-cutting |
| Sensor | Infrared human body sensor |
| Возможности подключения | WiFi / Ethernet / Optional 4G |
| Материал | Cold-rolled steel with powder coating |
| Установка | Wall-mounted or floor stand |
| Источник питания | 100–240 В переменного тока, 50/60Гц |
🏢 Сценарии применения
🍱 Рестораны & Cafeterias: Quick ordering, menu browsing, and self-payment.
☕ Кафе & Магазины десертов: Card, QR-код, or NFC contactless checkout.
🛒 Розничная торговля & Supermarkets: Multi-payment counter for seamless transactions.
🏫 Campus & Столовые: ID card-based or QR-based meal pickup.
🏢 Corporate Buildings: Employee self-ordering and automated canteen systems.
