🏨 Обзор продукта

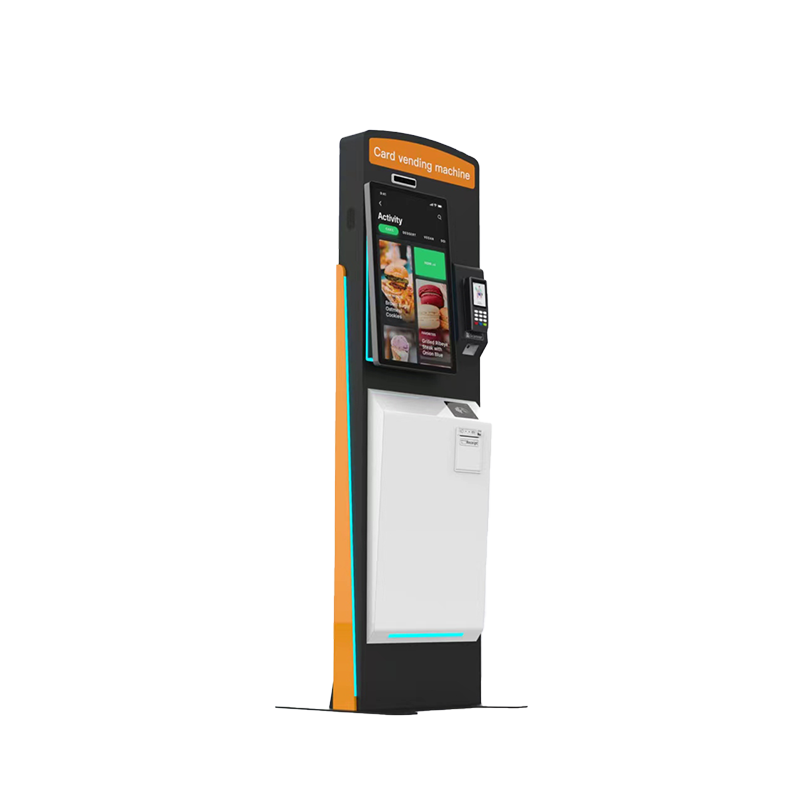

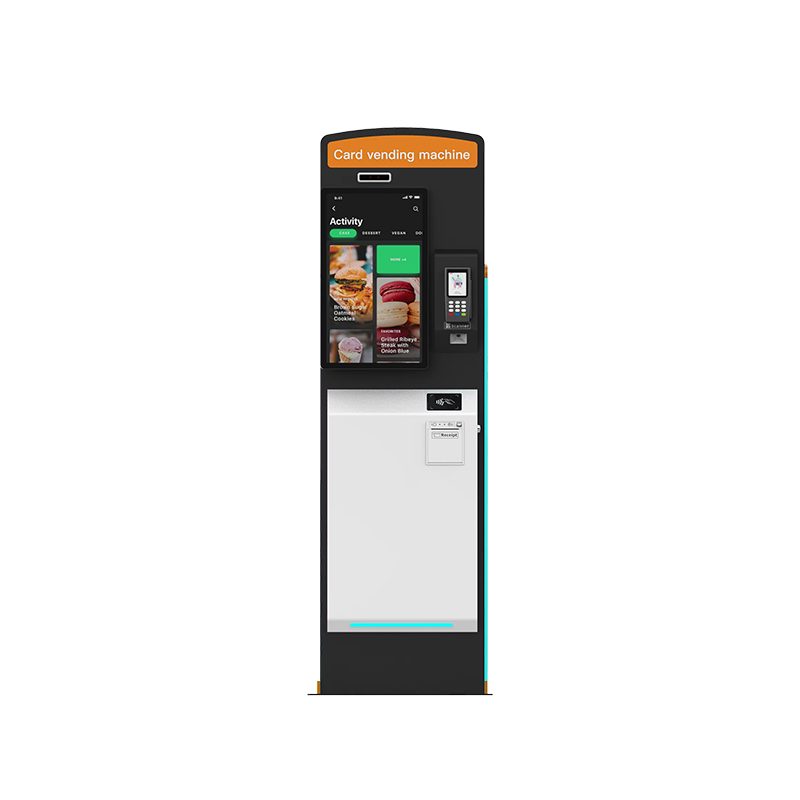

🛎️ The 21 5 inch vertical payment kiosk with QR NFC card reader and restaurant POS integration is an intelligent self service terminal designed for modern restaurants retail stores and commercial environments.
It combines self ordering payment receipt printing and backend synchronization into one compact all in one solution helping businesses reduce queues improve service speed and optimize operational efficiency.
The kiosk supports multiple payment methods including NFC bank card IC card magnetic stripe card and QR code payment for flexible customer interaction.
🌟 Ключевые особенности
🖥️ 21.5 Inch Full HD Touchscreen
А 21 5 inch vertical payment kiosk with QR NFC card reader and restaurant POS integration features a 1920 × 1080 capacitive touchscreen with responsive multi touch operation for smooth customer interaction.
💳 Multiple Payment Methods
Supports NFC contactless payment bank cards IC cards magnetic stripe cards and QR mobile payment including Apple Pay Google Pay Alipay and WeChat Pay.
📱 High Speed QR Scanner
Integrated 1D and 2D barcode scanner enables fast coupon scanning mobile payment and order verification.
🧾 Built In Thermal Printer
Equipped with an 80mm thermal receipt printer supporting automatic paper cutting and high speed printing for receipts and order tickets.
🍔 Restaurant POS Integration
Supports seamless connection with restaurant POS systems kitchen display systems ERP and online ordering platforms for real time order synchronization.
👁️ Optional Face Recognition
Optional HD or 3D structured light camera supports face recognition membership identification and touchless interaction.
🔐 Secure PIN Input
Integrated encrypted keypad ensures safe payment processing and secure transaction authentication.
🌐 Flexible Connectivity
Supports Ethernet WiFi Bluetooth and optional 4G communication for flexible deployment.
🏗️ Commercial Grade Structure
Constructed from cold rolled steel and tempered glass with durable anti corrosion surface treatment for long term operation.
⚙️ Технические характеристики
| Категория | Спецификация |
|---|---|
| Отображать | 21.5 дюймовый сенсорный ЖК-экран |
| Разрешение | 1920 × 1080 |
| Сенсорный тип | 10 точечное емкостное касание |
| Операционная система | Окна 10 11 Android 11 необязательный |
| Процессор | Интел i5 / RK3568 опционально |
| Память | 4GB 8GB optional |
| Хранилище | 64GB 128GB SSD optional |
| Сканер | 1D 2D QR-сканер штрих-кода |
| Принтер | 80термопринтер чеков мм |
| NFC-считыватель | ISO14443 Type A B |
| Кардридер | IC card magnetic stripe bank card |
| Камера | HD camera optional |
| Возможности подключения | WiFi Ethernet Bluetooth optional 4G |
| Материал | Cold rolled steel tempered glass |
| Установка | Vertical floor standing |
| Источник питания | 100–240 В переменного тока 50 60Гц |
🏢 Сценарии применения
🍔 Restaurants – Self ordering and payment
☕ Cafes – Fast checkout and pickup
🏪 Retail Stores – Self service payment and membership management
🛒 Supermarkets – Queue reduction and checkout automation
🏨 Hotels – Self payment and guest registration
🏥 Hospitals – Registration and self service billing
