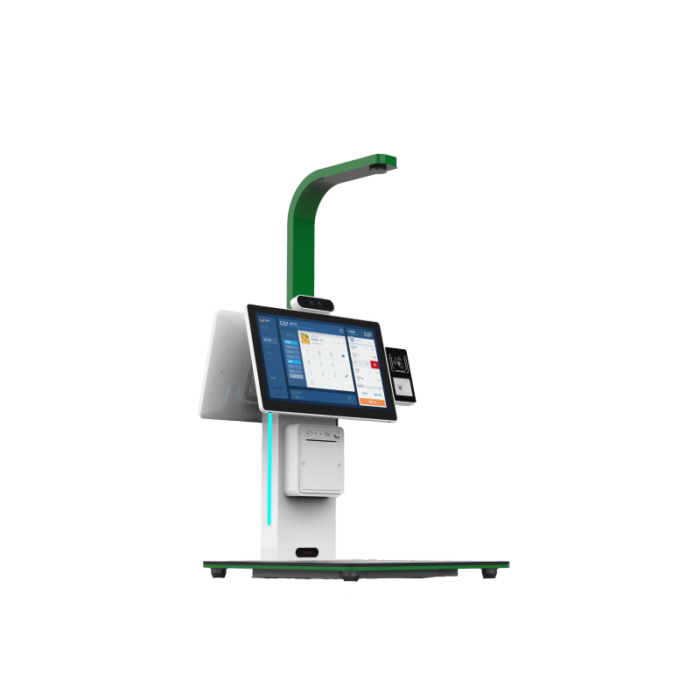

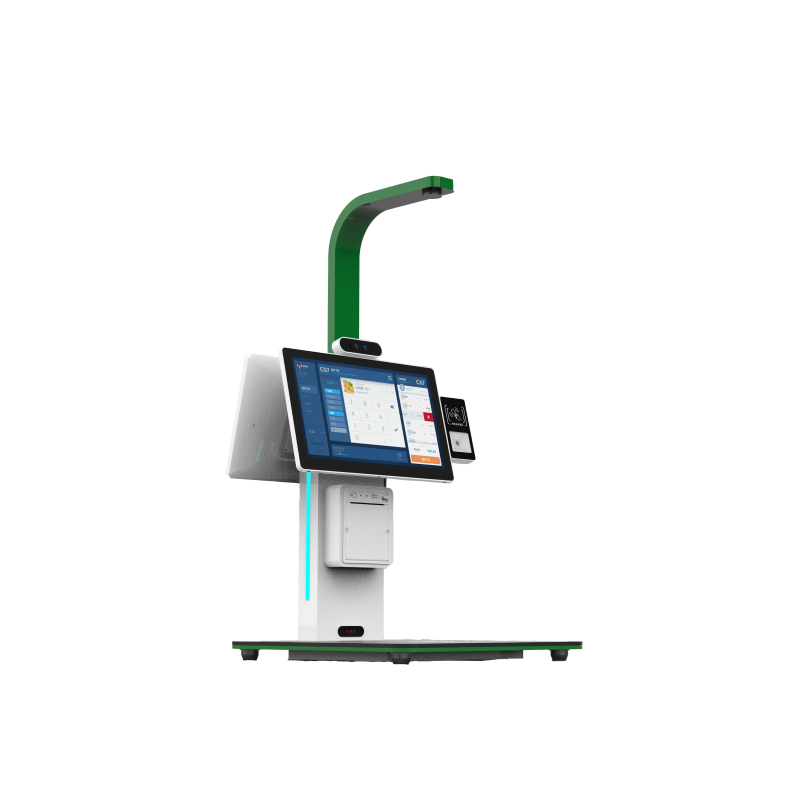

The AI Camera Scale POS Kiosk represents the next evolution in self-service technology with its integrated AI Camera Scale POS Kiosk. This innovative Self-Service Ordering solution combines visual recognition with precision weighing in a flexible Wall-Mountable Floor/Tabletop Touchscreen Terminal that adapts to any space constraint.
This advanced AI Camera Scale POS Kiosk utilizes deep learning algorithms to recognize food items, table numbers, and customer gestures, creating a truly intelligent Self-Service Ordering experience. The built-in high-precision scale verifies portion sizes while the system processes payments, making this Wall-Mountable Floor/Tabletop Touchscreen Terminal ideal for cafeterias, food halls, and quick-service restaurants.
As a versatile Self-Service Ordering solution, the terminal's modular design allows for either permanent wall installation or flexible floor standing deployment. The AI Camera Scale POS Kiosk continuously improves its recognition accuracy through machine learning, while the responsive Touchscreen Terminal ensures smooth operation during peak business hours.
| Часть | Имя | Параметры аксессуаров | ||
|---|---|---|---|---|
| Шкаф | Корпус из листового металла | Изготовлены из высококачественных стальных тарелок с холодным, У него роман и прекрасная внешность, разумный макет и является эргономичным. Внутренние части разработаны с модульностью в качестве основного корпуса, и проводка стандартизированная и аккуратная. Внешний вид только для справки, и фактический дизайн должен преобладать. | ||
| System Configuration | Android System Configuration | Процессор: RK3588 8-core 64-bit GPU: ARM Mali-G610 MC4 NPU: 6TOPS Frequency: 2.4ГГц Память: 4ГБ Хранилище: 64ГБ Операционная система: Android 11 Interface: 2*USB (one of which is compatible with OTG) 1*RJ45 (LAN), 1*округ Колумбия Networking mode: Wired: 10M / 100M adaptive | ||
| Модуль сенсорного дисплея | Сенсорный экран | Сенсорный экран: 15.6 inches Сенсорный экран: support Display ratio: 16:10 Разрешение: 1920 * 1280 Display area: 216.96 x 135.6 мм Viewing angle: 85/85/85/85 (Typ.)(CR≥10) Contrast ratio: 800:1 Яркость: 300cd/㎡ Color: 262K, 45% NTSC | ||
| Other modules | Спикер | Встроенный 4 ом 3 ватт | ||
| Fill light | <8000cd> | |||
| Weighing sensor | Range 40KG, error ±1g | |||
| AI camera | Pixels: 500W., Максимальное разрешение: 1920*1080, Frame rate: 30fp Data format: YUV/MJPG, Photosensitive format: 1/2.7 дюйм | |||
| Barcode scanner | Support 1-D barcodes: СКП, EAN, Code128, Код 39, Код 93, Code11, Matrix 2 из 5, Interleaved 2 из 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, и т. д.. 2-D штрих-коды: PDF417, MicroPDF417, Матрица данных, Maxicode, QR-код, MicroQR, Aztec, Hanxin, и т. д.. | |||
| IC card reader | Support protocol: ISO14443TYPEA, working frequency: 13.56MHz, card reading distance: 0-----50мм Can read MIFARE series cards that comply with ISO14443TYPEA standard | |||
| Face recognition Бинокулярная камера | Color pixels: 200W., IR pixels: 200W. Maximum color image resolution/frame rate: 1920*1080@30fps, Maximum IR image resolution/frame rate: 1920*1080@30fps Video compression format: MJPG/YUY | |||
| Optional module | Payment camera | Depth map resolution: 480x640@30fps Color map resolution: 960* 1 280@30fps, 480* 640@30fps D2C resolution: 480* 640@30fps Depth FOV: H54°±2, V68°±3° Color FOV: H54°±2, V68°±3° D2C FOV: H54°±2, V68°±3° | ||
| Модуль питания | импульсный источник питания | Input voltage: DC 12V 5A Власть: about 40W | ||
| Work Environment | Work Environment | Working temperature: 0℃ - 45℃ Working humidity: 30% - 80% | ||
| Storage Environment | Storage Environment | Storage temperature: -20℃ - 60℃ Storage humidity: 30% - 70% |
